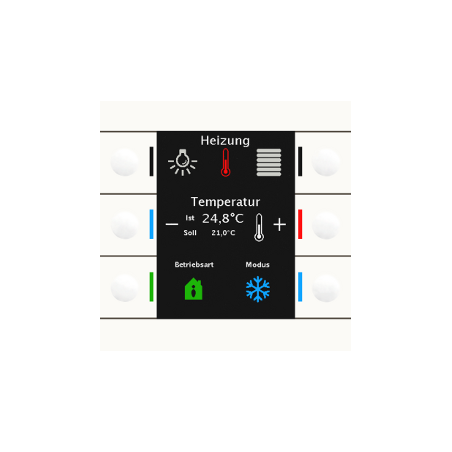

Push Button Smart 86, White glossy finish, farebný displej, RGB LED indikátory

219,60 €
S DPH

4/6/8/12--tlačítko s farebným displejom, RGB LED indikátory, farba biela

Množstvo
Na objednávku, cca 5-7 pracovných dní

  • Production in Germany, certified according to ISO 9001
  • Large, coloured active display to indicate function and status
  • Adjustable background colour of the disply (white or black)
  • Symbols and plain text adjustable for each button/function
  • 6 mechanical buttons with finger recess
  • Up to 12 functions on 2 or 3 levels (2x6 or 3x4 functions)
  • Up to 6 functions without level switching
  • The buttons can be programmed for 1 or 2 button operation
  • 1 or 2 button operation for switching, dimming, shutters, values
  • Short/long button push with 2 objects
  • RGB status for each button separate controlable from each level
  • Visualisation of inside/outside temperature and time
  • Automatic display brightness via light sensor and day/night object
  • Slap function with additional switch channel
  • Installation without frame in a installation box
  • Dimensions (W x H): 86mm x 86mm
  • Recommended installation height: 1,10 - 1,25m (as Push Button)
  • No additional power supply required
  • Integrated bus coupling unit
  • 3 years warranty

mdt-BE-TAS86.01

Tabuľka dát

Použitie
osvetlenie
Rozhranie
KNX
