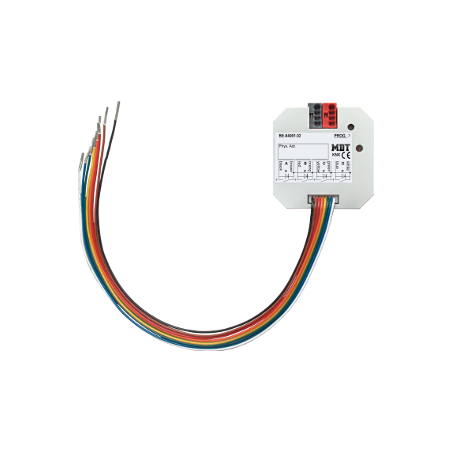

Universal Interface 4xIN, Contact Inputs, KNX, MDT

80,40 €
72,36 € Zľava 10%
S DPH

Universal Interface 6xIN

Množstvo
Posledné kusy v sklade

  • Production in Germany, certified according to ISO 9001
  • To connect push-buttons or auxiliary contacts
  • Each input can be set as 1,5mA low current output for LED
    NO or NC contact operation, programmable length of button push
  • Dimming and shutter function for 1 and 2 button operation
  • Forced setting function for each output
  • Short/long button push with 2 objects
  • Integrated pulse and switching counters with extensive counter functions
  • Cyclical sending of contact state programmable
  • Flush mounted installation (length of connection cables: 22cm)
  • Dimensions (W x H x D): 41mm x 41mm x 12mm
  • Integrated bus coupling unit
  • 3 years warranty
mdt-BE-04001.01
2 položky

Tabuľka dát

Použitie
chladenie
osvetlenie
teplota
vykurovanie
všeobecné
Rozhranie
KNX
